糧機輸送鏈

詳細描述：

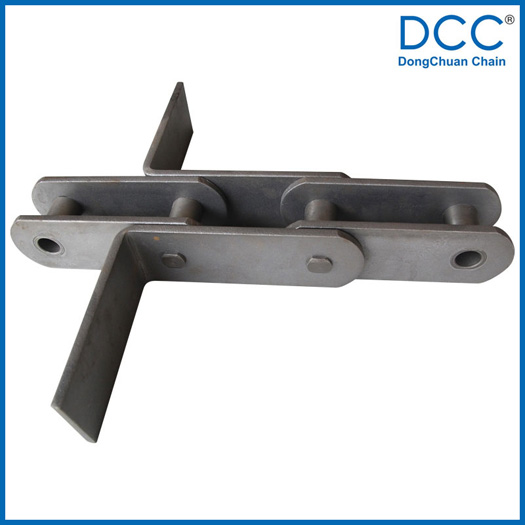

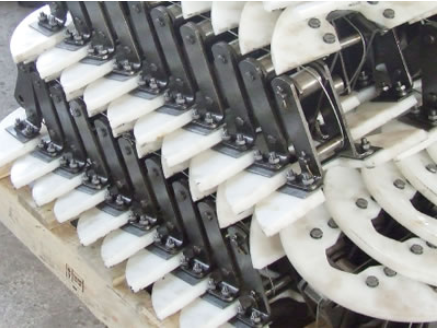

糧機輸送鏈主要輸送糧食及其它糧食廢渣，鏈條有焊接和折彎等結構。焊接鏈條為標準基鏈和刮板進行焊接，折彎鏈條是由鏈板經過折彎而成，鏈條所有零件都為中碳鋼經過熱處理。鏈條中每隔幾節裝有高分子聚乙烯的清掃板和回料斗。

糧機輸送鏈適用領域：糧食機械。

糧機輸送鏈

Technical Specifications

Chain no.	Pitch p (mm)	Inner width of inner link b1(min) (mm)	Diameter of roller d1(max) (mm)	Diameter of pin d2 (mm)	Height of sidebar h (mm)	Thickness of sidebar t (mm)	Width of scraper L (mm)	Height of scraper h2 (mm)	Tensile strength q (min) (KN)
LTR665-R	66.5	26.5	22	12	30	6	130	60	130
LTR665	66.5	26.5	22	12	30	6	130	60	130

LTR665-R roller chain has separate rollers, while LTR665 has integrated roller and sleeve.

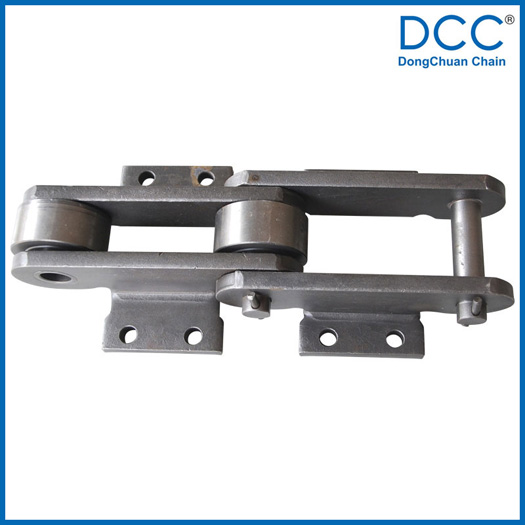

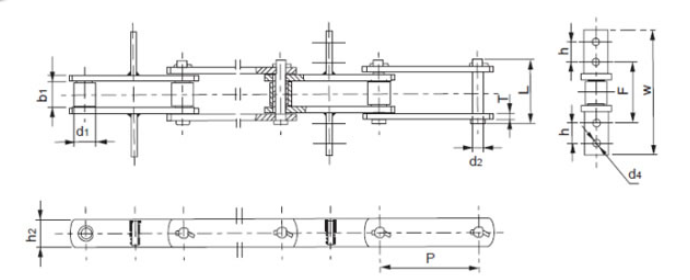

Dimensions of Attachment Plate
Chain no.	h1 (mm)	d4 (mm)	F (mm)	W (mm)
LTR665-R	32	10	102	130
LTR665	32	10	102	130

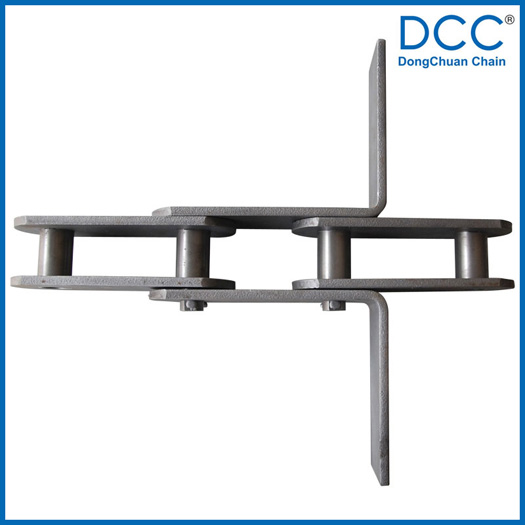

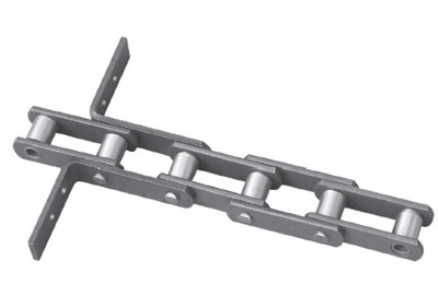

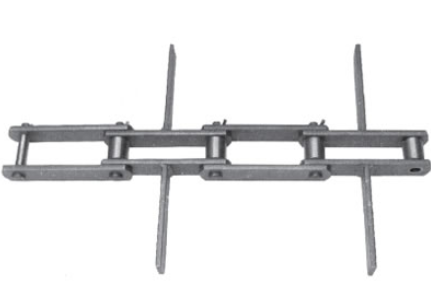

糧機輸送鏈

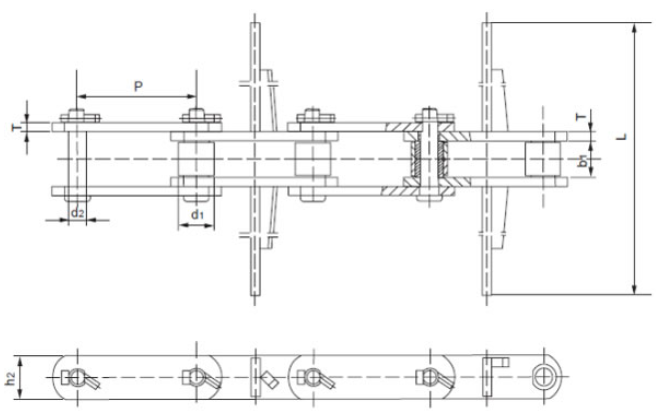

Chain no.	Pitch P (mm)	Inner width of inner link b1(min) (mm)	Diameter of roller d1(max) (mm)	Diameter of pin d2 (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Width of scraper L (mm)	Height of scraper h2 (mm)	Tensile strength Q (min) (KN)
LTF665	66.5	26.5	22	12	30	6	164	30	130
LTF665	66.5	26.5	22	12	30	6	180	30	130
LTF665	66.5	26.5	22	12	30	6	225-265	30	130
LTF110	100	38.5	36	16	40	6	225-305	40	220
LTF1 110	100	29.6	22.3	11.1	29	5	185	29	90
LS125	125	32.5	28.6	14.3	42	6	235	42	170
LS125A	125	32	25	17	56	6	220	56	220
LS125B	125	32	36	20	60	6	290	60	300
LS160	160	52	40	20	55	9.5	470	55	378
LS160A	160	52	40	20	55	9.5	580	55	378
LS160B	160	45	39.3	22	60	8	360	60	470
LS160C	160	36.8	36	18	48	8	160	48	240
LS160D	160	45	39.3	22	60	6	370	60	352

Chain no.	Pitch P (mm)	inner width of inner link b1(min) (mm)	diameter of roller d1(max) (mm)	diameter of pin d2 (mm)	height of sidebar h (mm)	thickness of sidebar T (mm)	width of scraper L (mm)	height of scraper h2 (mm)	tensile strength Q (min) (KN)
M56-P63*218	63	24		10	30	4	218	30	56
GLF66.5*160/4L	66.5	26.5		12.7	30	6	160	30	100
GLF66.5(6)D*200	66.5	26.5		12.7	30	6	200	30	100
LTF665-164	66.5	26.5	22.23	12	30	6	164	30	130
LTF665-180	66.5	26.5	22.23	12	30	6	180	30	130
LTF665-130	66.5	26.5	22.23	12	30	6	130	30	130
LTF665-225	66.5	26.5	22.23	12	30	6	225	30	130
TGSS25A 3	100	38	36	16	40	6	232	40	123.5
DC1000ST000	100	25		14	40	5	180	40	156
P100*175	100	25		10	30	5	175	30	88
GLF100(6)D*225	100	38	36	16	40	6	225	40	150
GLF100(6)D*294	100	38	36	16	40	6	294	40	150
LTF100	100	29.6	22.23	12	30	6	185.6	30	130
P110F2/2L	125	32		15.85	35	6	235	35	170
P125-TIP-A	125	30		15	40	5	160	40	80
DC1250ST005	125	35		18	50	6	200	50	176.4
DC1250ST006	125	35		18	50	6	250	50	176.4
DC1250ST007	125	35		18	50	6	300	50	176.4
DC1250ST010	125	30		16	40	6	280	40	169
DC1250ST011	125	25		14	35	5	180	35	117
M224-P125*385	125	43		21	60	8	385	60	224
M224-P125*285	125	43		21	60	8	285	60	224
GSS630	125	52	40	20	60	10	590	60	274.4
DC125OST012	125	25		14	40	5	300	40	156
M112-P125*285	125	32		15	40	6	285	40	112
P125	125	52	44	22	60	10	445	60	376
GLF125(6)D*300	125	32		18	50	6	300	50	190
FV90-P125-170	125	25		14	35	5	170	35	90
M112-P125*385	125	32		15	40	6	385	40	112
P150-TIP-A	150	30		15	40	5	210	40	80
P160-TIP-A(Ⅰ)	160	30		15	50	6	265	50	140
P160-TIP-A(Ⅱ)	160	30		15	45	6	265	45	112
FV180-P160	160	45		20	50	8	390	50	160
GLF160(B)D1385	160	36	36	17.8	50	8	385	50	254
P200*825	200	20		25.4	63.5	12.7	825	63.5

糧機輸送鏈

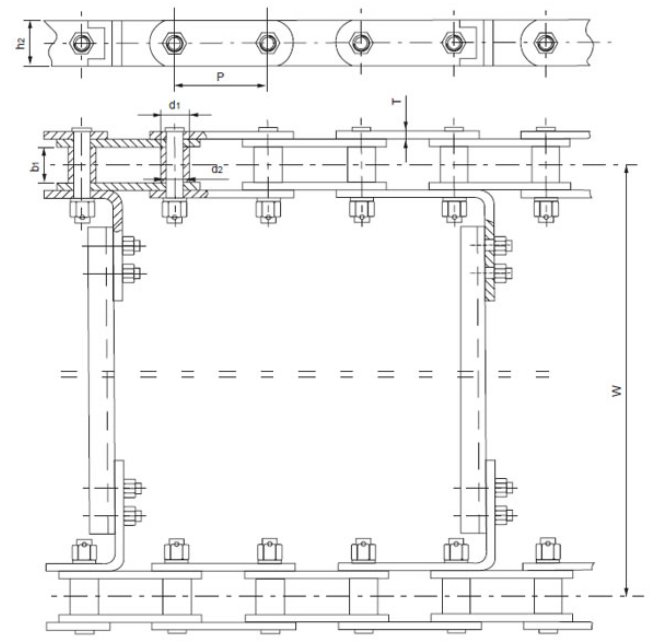

Chain no.	Pitch P (mm)	Inner width of inner link b1(min) (mm)	Diameter of roller d1(max) (mm)	Diameter of pin d2 (mm)	Length of pin L (max) (mm)	Height of sidebar h2 (mm)	Thickness of sidebar T (mm)	Chain distance W (mm)	Tensile strength of single chain Q (min) (KN)
LTF665	66.5	26.5	22	12	54	30	6	127	130
LTF665	100	38.5	36	16	82	40	8	150	200
LTF100	110	23.9	38	15.85	77	35	6	188	170
LTF125	125	52	40	28.1	101.2	65	8	260	220

糧機輸送鏈

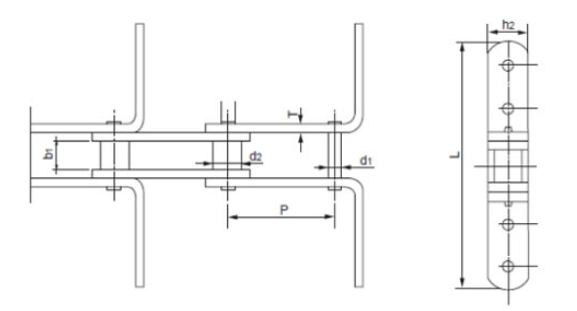

Chain no.	Pitch P (mm)	Inner width of inner link b1(min) (mm)	Diameter of roller d1(max) (mm)	Diameter of pin d2 (mm)	Height of sidebar h2 (mm)	Thickness of sidebar T (mm)	Width of scraper L (mm)	Tensile strength Q (min) (KN)
DC101.6	101.6	31.75	31.75	15.8	50	8	154	138
DC101.6	101.6	31.75	40	15.8	50	8	198	138
DC101.6P	101.6	31.75	40	15.8	50	8	279	138
DC152.4	152.4	52	40	19.1	60	8	188	158
DC152.4	152.4	52	40	19.1	60	8	250	158
DC152.4P	152.4	52	40	19.1	60	8	378	158

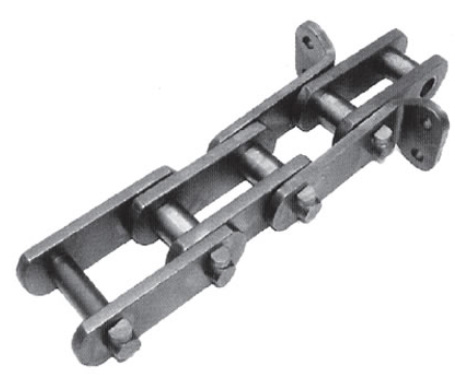

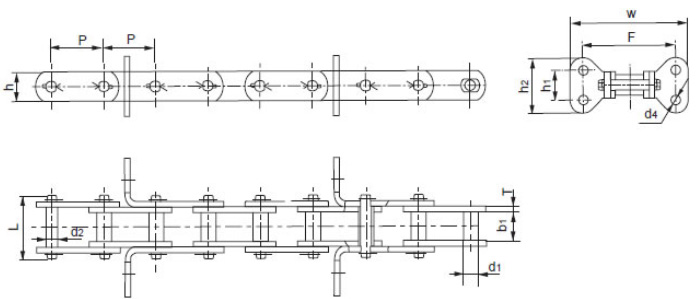

Chain no.	Pitch P (mm)	Inner width of inner link b1(min) (mm)	Diameter of roller d1(max) (mm)	Height of sidebar h2 (mm)	Thickness of sidebar T (mm)	Diameter of pin d2 (mm)	Length of pin L(max)(mm)	Hole diameter of attachment plate d4(mm)	Central distance of holes of attachment plate		Outer width of attachment plate W(max)(mm)	Tensile strength Q(min)(KN)	Weight per meter q (kg/m)
Chain no.	Pitch P (mm)	Inner width of inner link b1(min) (mm)	Diameter of roller d1(max) (mm)	Height of sidebar h2 (mm)	Thickness of sidebar T (mm)	Diameter of pin d2 (mm)	Length of pin L(max)(mm)	Hole diameter of attachment plate d4(mm)	F(mm)	h(mm)	Outer width of attachment plate W(max)(mm)	Tensile strength Q(min)(KN)	Weight per meter q (kg/m)
HR6608-S-F20	66.27	27	22.2	28.6	6.3	11	65.7	9.5	95.6	25	180	70.6	65
HR6608-S-F25	66.27	27	22.2	28.6	6.3	11	65.7	9.5	95.6	50	230	70.6	80
HR6608-S-F28	66.27	27	22.2	28.6	6.3	11	65.7	9.5	95.6	50	260	70.6	90
HR10108-S-F15	101.60	27	22.2	28.6	6.3	11	65.7	7.5	63.5	21	130	70.6	130
HR10108-S-F20	101.60	27	22.2	28.6	6.3	11	65.7	9.5	95.6	25	180	70.6	210
HR10108-S-F25	101.60	27	22.2	28.6	6.3	11	65.7	9.5	95.6	50	230	70.6
HR10108-S-F28	101.60	27	22.2	28.6	6.3	11	65.7	9.5	95.6	50	260	70.6

糧機輸送鏈

Chain no.	Pitch P (mm)	Inner width of inner link b1(min) (mm)	Diameter of roller d1(max) (mm)	Diameter of pin d2 (mm)	Height of sidebar h2 (mm)	Thickness of sidebar T (mm)	Width of scraper B(mm)	Tensile strength Q(min)(KN)
M80-100	100	25	40	10	28	6	6	65
M80-125	125	27	50	12	32	6	6	80
M80-160	160	27	50	12	36	6	5	90
M80-160H	160.00	32	60	15	50	8	8	130
M90-200	200.00	40	80	18	50	10	10	210

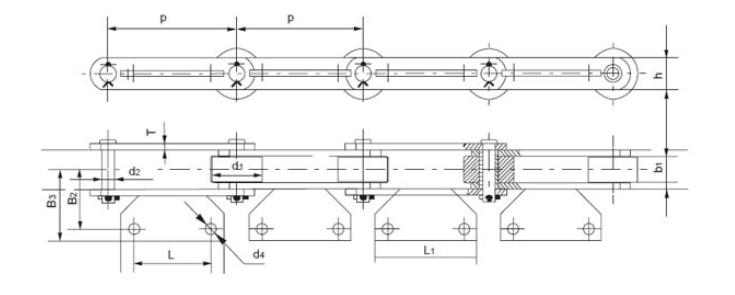

Dimensions of Attachment Plate
Chain no.	B2(mm)	B3(mm)	d4(mm)	L(mm)	L1(mm)
M80-100	50	60	9	60	80
M80-125	60	71	11	75	100
M80-160	60	71	11	80	110
M80-160H	65.00	78	13	80	120
M90-200	70.00	90	13	100	140
